Ideal for anodizing titanium and niobium, this anodizer DC power supply is powerful and easy to use, with precision controls that deliver the results you’re looking for. Voltage is variable from 0–120 volts, enabling you to create the entire rainbow of colors that niobium and titanium are capable of achieving. Whether you are anodizing in production batches or working with one-of-a-kind designs, this machine delivers the power, control and reliability you need.
- High-precision LED digital display, intuitive and clear.
- 8 cm smart fan, excellent heat dissipation, practical extend fan life and reduce noise.
- Advanced technology to effectively reduce the weight of the power and convenience of mobile power.
- A variety of protection, current limiting protection (OCP), over temperature protection (OTP), Over Power Protection (OPP).

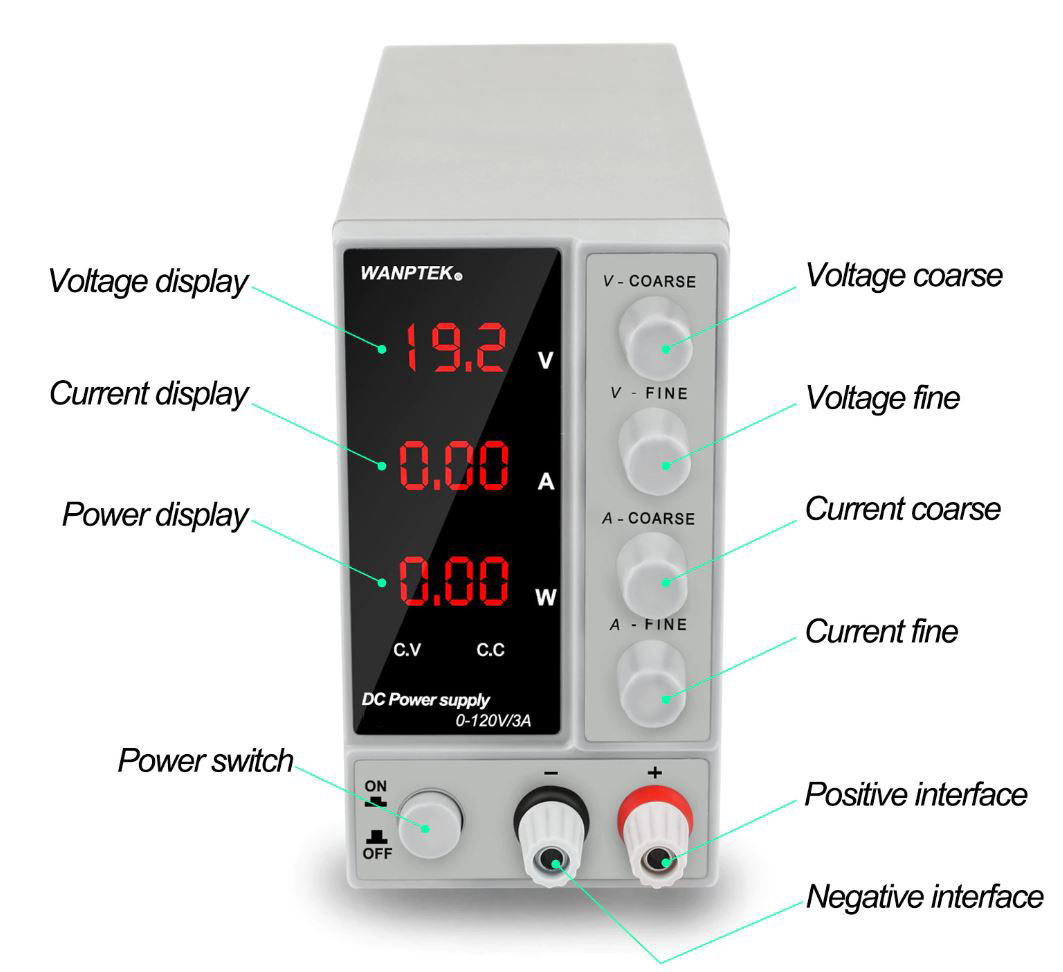

- Coarse and fine adjustment knob for precise adjustment.
- Input voltage: 220V ± 10% @ 50Hz ± 5Hz 110V ± 10% @ 60Hz ± 5Hz Switch or a single voltage input
- Output voltage: DC 0- 120 V (see Table I)
- Output Current: DC 0- 3 A (see Table I)
- Display Accuracy: ± 1% ± 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A) ± 0.1% ± 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
- boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
- Voltage Stability: ≤0.05% + 1mV
- The current stability: ≤0.1% + 10mA
- Load stability: CV≤0.05% + 1mV CC≤0.05% + 10mA
- Ripple and Noise: CV≤10mV CC≤20mA (RMS)
- Overall efficiency: ≥80% (under full load test)
- Working environment: -10 – + 40 Relative humidity 20% -80% (non-condensing)
- Storage Environment: -20 – + 80 Relative humidity 20% -70% (non-condensing)
- Pressure test: Input – Output: 1.5KVAC / 1 Minute Input – Housing: 1.5KVAC / 1 Minute Output – Housing: 500VAC / 1 Minute 14. Ground Resistance:

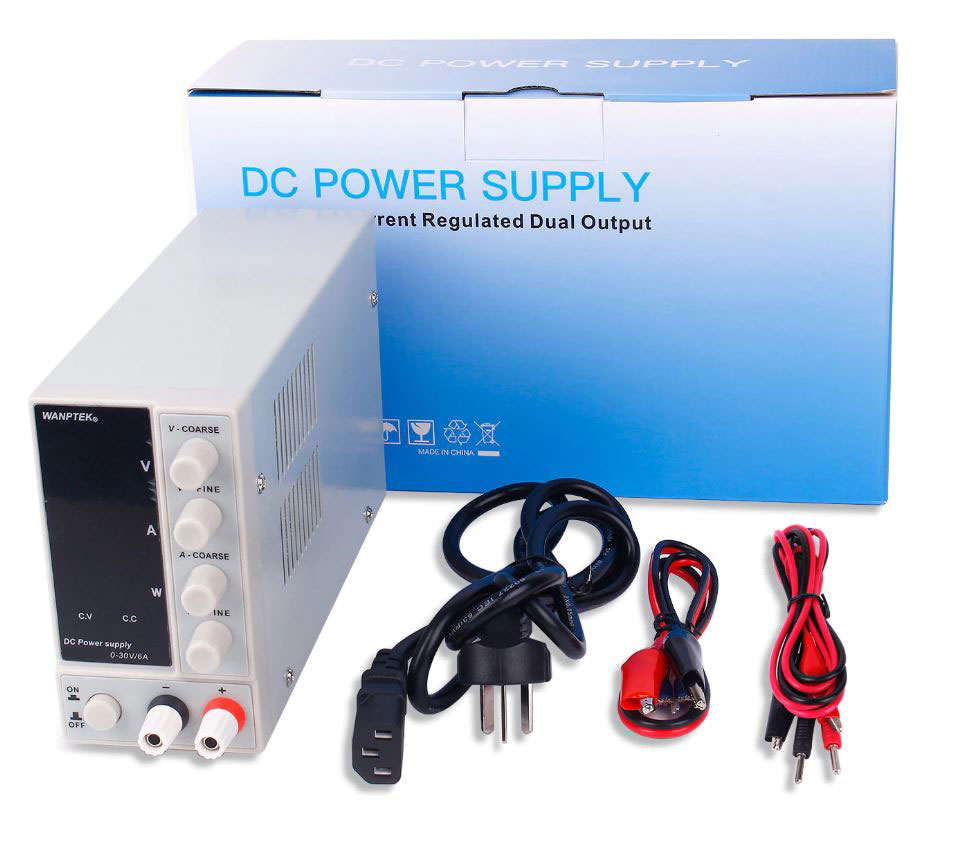

Package List :
1pcs DC Power Supply (Anodizer)
1pcs Australian Power Cord
1pair Crocodile Clip Line
– 1 year warranty
Free Shipping to Australia Only .
