This rectifier is intended primarily for e-coating such as ‘Kliar E-Coating’ but is also adapted to regular electroplating and electroforming.

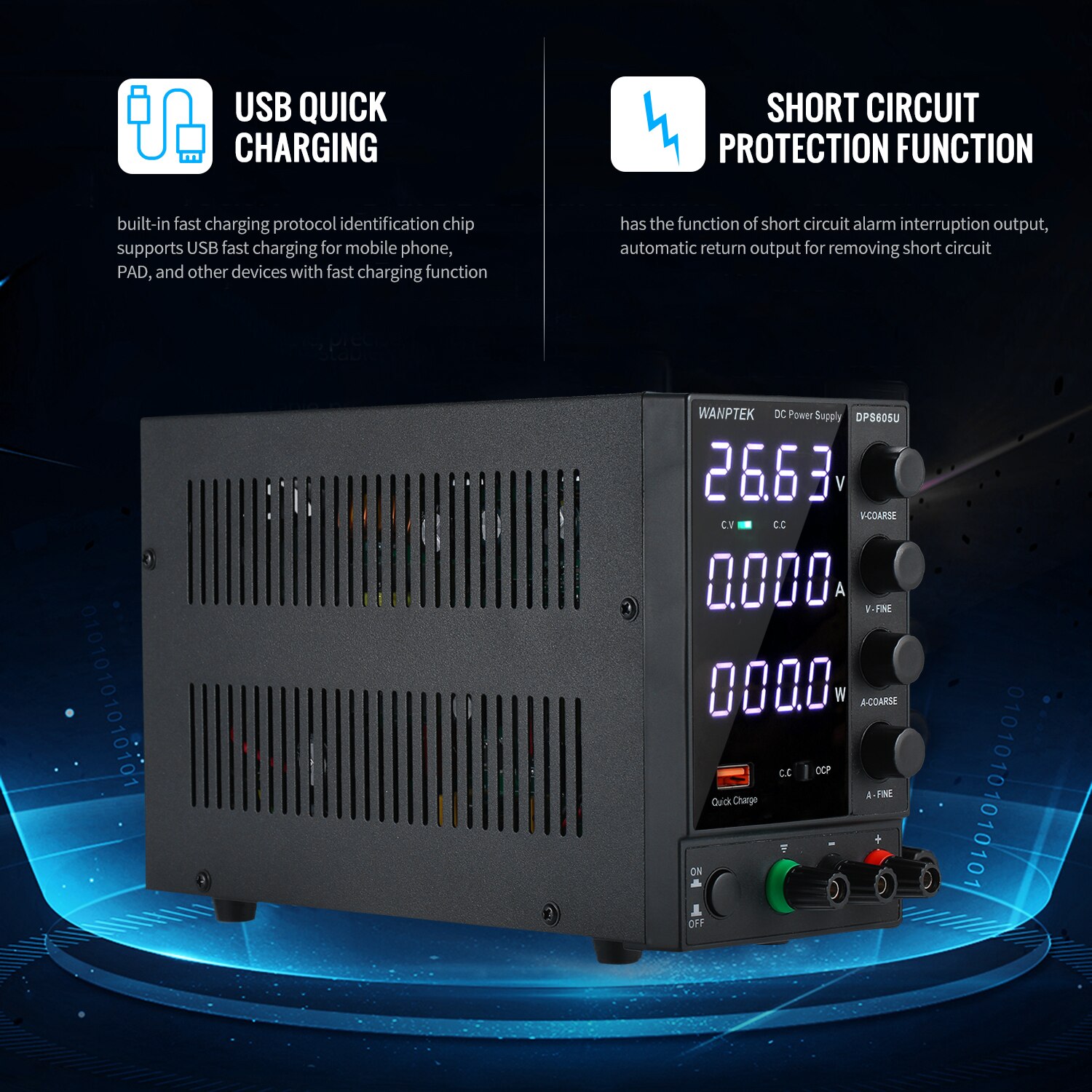

USB Quick Charging: the machine has built-in fast charging protocol identification chip that supports USB fast charging function.
Safety Operation: it has over voltage protection(OVP), over current protection(OCP), over temperature protection and the upgraded short circuit alarm function.

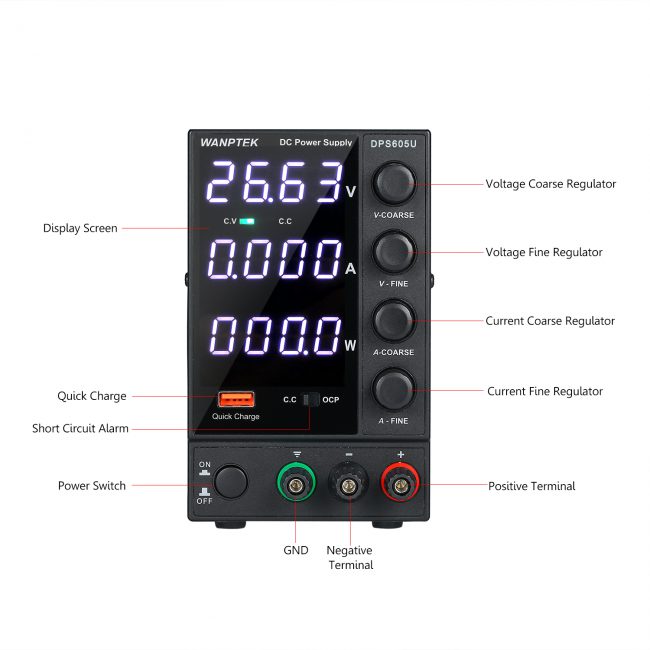

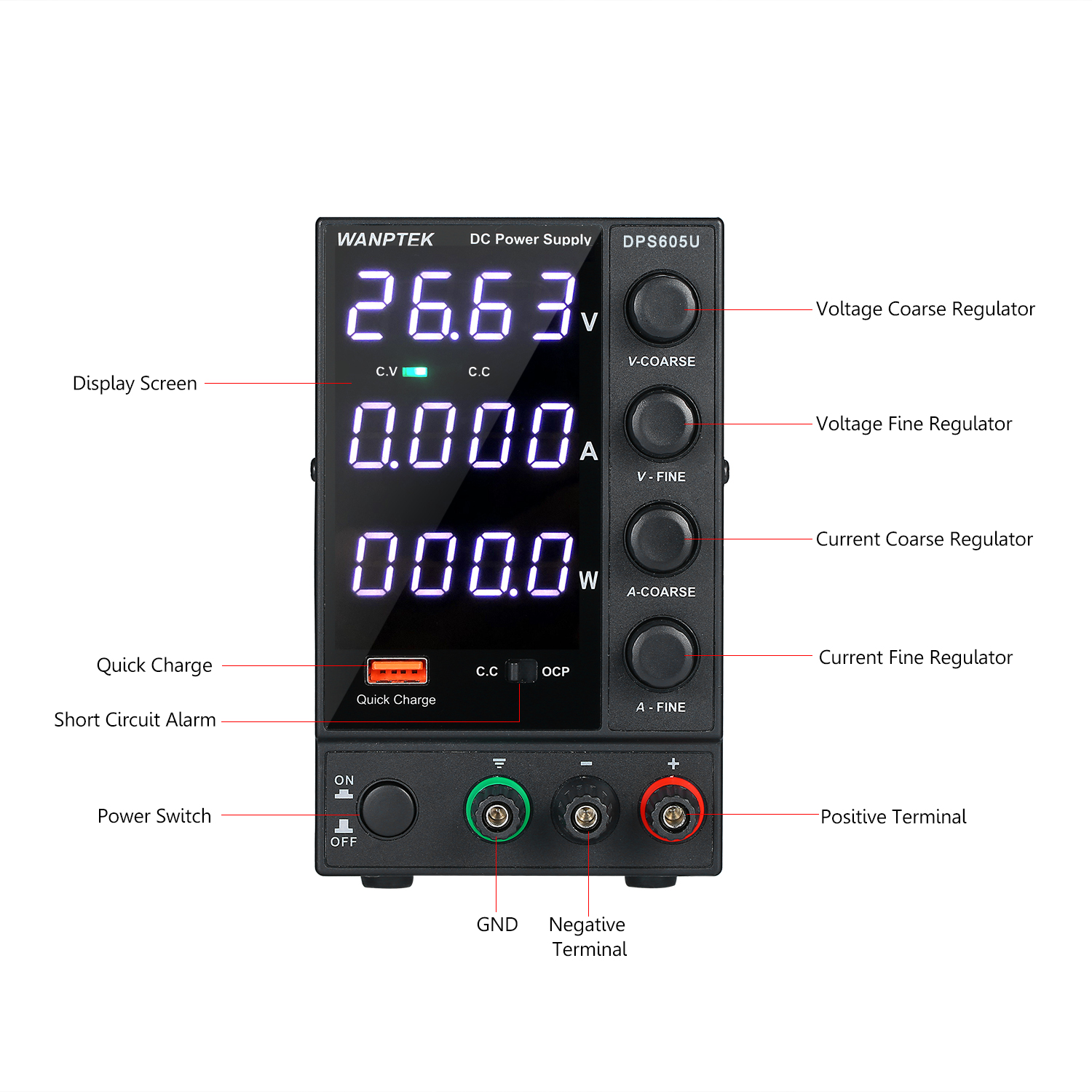

Adjustable Output Voltage & Current: output voltage and output current can be continuously adjusted between 0 and nominal value with fine regulating and coarse regulating.
Clearly Display & Functional: LED 4 digits display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
- Plug Type: AU
- Material: Aluminium alloy
- Model: DPS605U
- Output Voltage: 0～60V
- Output Current: 0～5A
- Output Power: 300W
- Auxiliary Output: USB quick charging 18W, supports multiple quick charging protocols
- Input Voltage: AC230V ± 10%, 50Hz; AC115V ± 10%, 60Hz
- Working Temperature: 0~40℃; Humidity: <80%RH
- Storage Temperature: -10~70℃; Humidity: <70%RH
- Voltage Stability: ≤0.1% ± 3mV
- Load Stability: ≤0.1% ± 3mV
- Ripple Noise: ≤20mVrms (effective value)
- Current Stability: ≤0.1% ± 3mA
- Load Stability: ≤0.2% ± 3mA
- Ripple Noise: ≤5mArms (effective value)
- Protection Mode: Current limiting protection/short circuit alarm stop output and self-recovery
- Display: Four-digit digital tube, three-window display: voltage, current, power
- Display Accuracy: 0.5% ± 3 digits
- Display Resolution: voltage 00.01V; current 0.001A
- Fuse: 3A
- Item Size: 246 * 90 * 152mm / 9.68 * 3.54 * 5.98in
- Item Weight: 1571g / 55.42oz
- Package Weight: 1737g / 61.29oz
- Package Size: 30 * 20 * 14cm / 11.81 * 7.87 * 5.51in

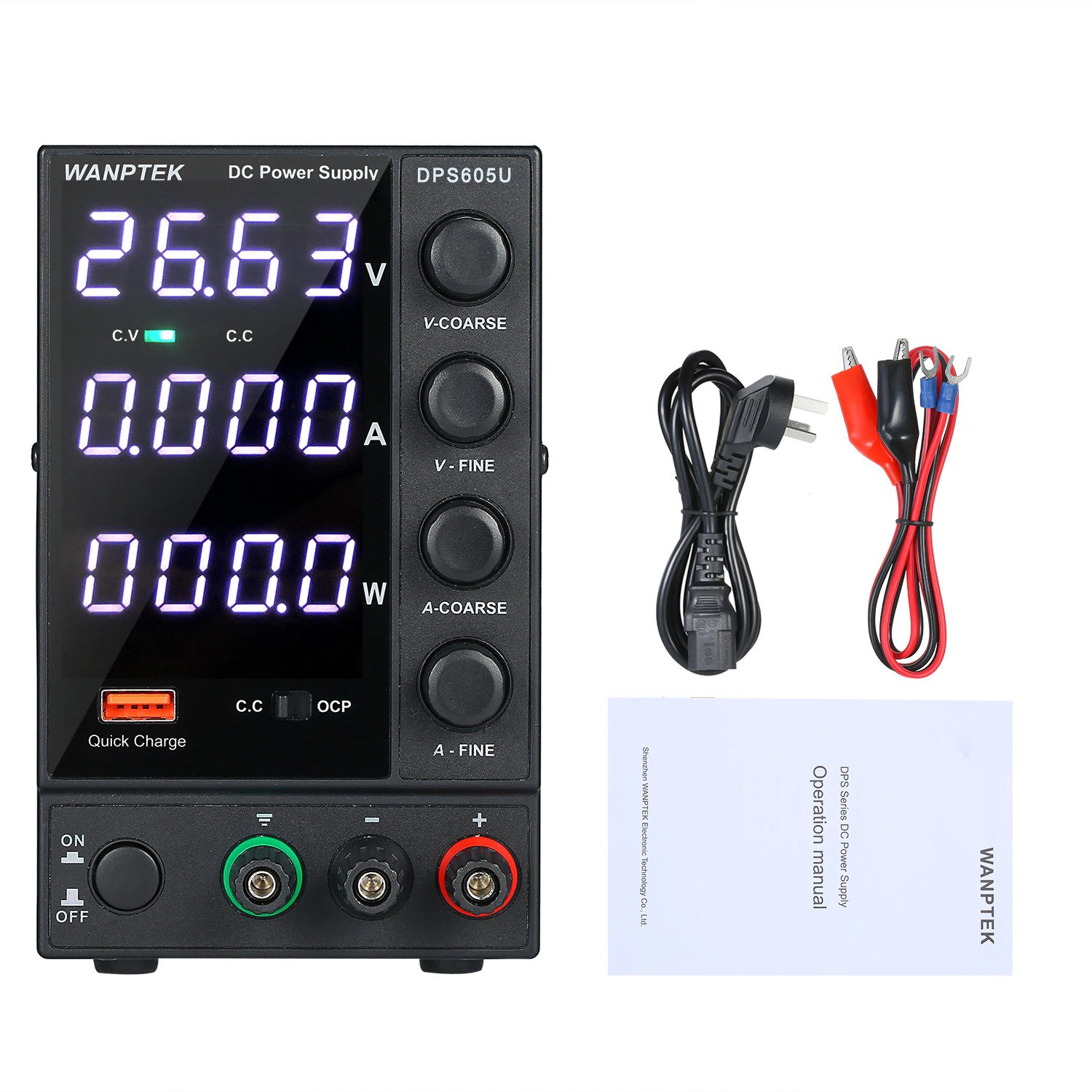

1 * DC Power Supply
1 * Australian Power Cord
1 * Alligator Clip Line
1 * User Manual (English)
– 1 year warranty
